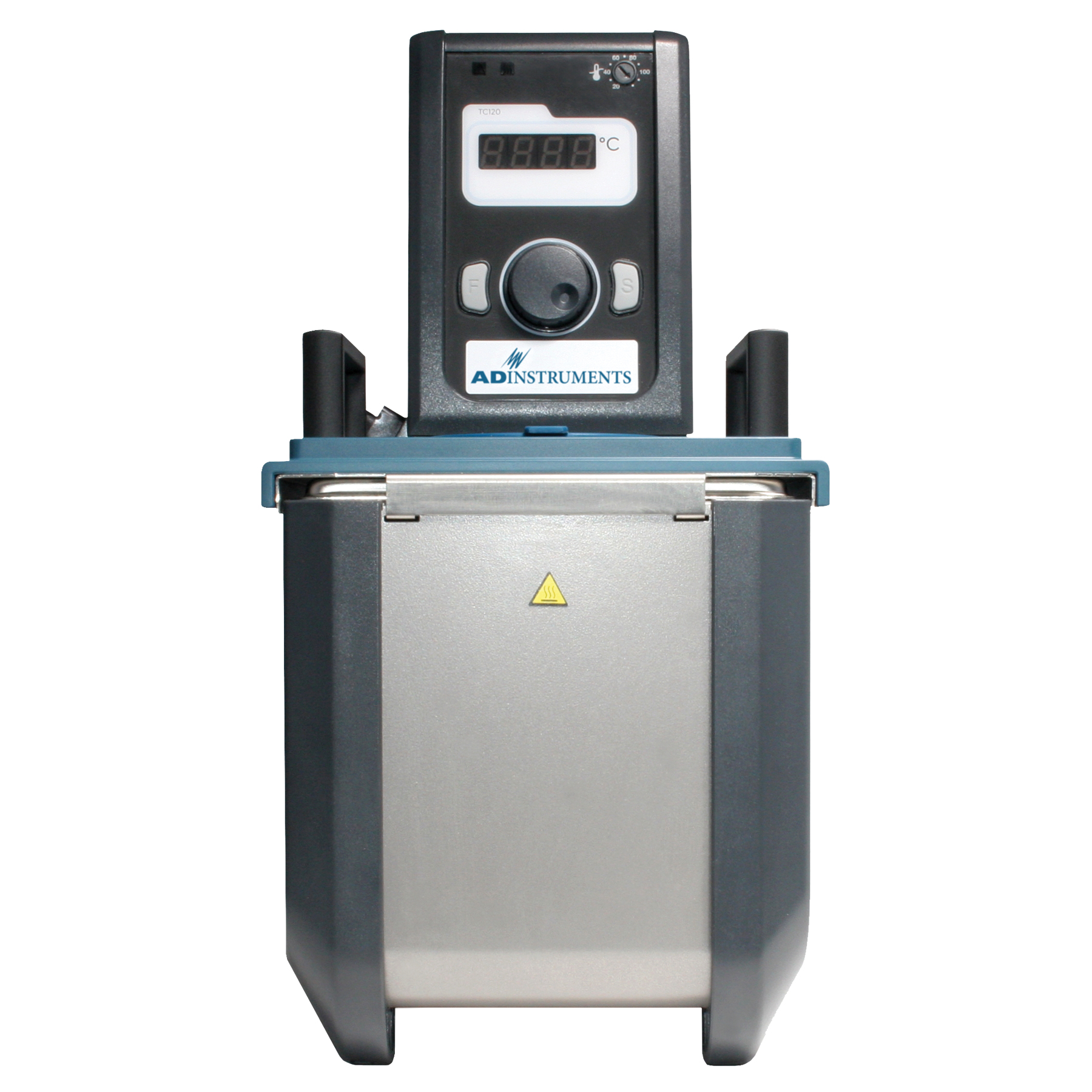

Thermal Water Circulator (5L)
Overview
A compact, bench-top, general purpose 5 L digital heated water circulator that allows temperature control of water in the range from ambient temperature to 100 °C with a stability level of ± 0.05 °C.
This thermal water circulator is ideal for use in pharmacology experiments in education and research that utilize simple setups. It features an easy-to-use interface for quick temperature setting and menu navigation. Supplied with a lid and two Hose Barb Adapters, which allow connection to an appropriate Radnoti water jacketed apparatus.
Related
Products
Research Applications
Cardiovascular Isolated Heart Systems
In Vitro Pharmacology + Isolated Tissue and Organs
Isolated Tissue Baths
In Vitro Pharmacology + Isolated Tissue and Organs
Key Features
- Temperature range ambient to 100 °C for water
- Clear, bright 4-digit display, easily read from a distance
- Simple-to-use dial plus two function keys for quick temperature setting and menu navigation
- 3 programmable temperature presets for convenience
- User calibration facility for optimum accuracy at the required operating temperature
- Two indicator lights (Heater On and Alarm)
- Countdown timer with audible alarm
- Excellent temperature stability and uniformity ensured by stirred circulation in the bath
- Low liquid level protection and adjustable over-temperature cut-out (fixed at 110 °C)
- Robust construction with corrosion-resistant materials, such as a durable stainless steel tank
- Has a lid with a removable cap
Support
Support Articles
Our Support Articles contain answers to common questions, how-tos, solutions, and documentation.
Training and Workshops
Maximize time and resources with our customized training services delivered at your facility, on your equipment, on your terms.
Details and Tech Specs
Technical
| Heater Specifications | |
|---|---|
| Dimensions (h x d x w) | 333 x 172 x 141 mm |
| Mains supply | 220-240 V @ 50/60 Hz or 110-120 V @ 50/6 Hz |
| Heater power | 1290 W @ 230 V or 1440 W @ 120 V |
| Electrical power (50-60Hz) | 1400 W at 230V or 1500 W @ 120 V |
| Height above tank rim | 20 mm |
| Depth below tank rim | 135 mm |
| Liquid depth min/max | 85/140 mm |
| Maximum pump head pressure (water) | 210 mbar (no flow) |
| Maximum flow (water) | 16 L/min |
| Pump connector 6 mm bore | Fits 9 mm inner diameter tubing |
| Pump connector 11 mm bore | Fits 15 mm inner diameter tubing |
| Weight | 2.8 kg |
| Tank Specifications | |
|---|---|
| Outer dimensions (h x d x w) | 215 mm x 335 mm x 185 mm |
| Opening (d x w) | 150 mm x 130 mm |
| Inner Height | 150 mm |
| Weight | 3kg |
Ordering Information:
When ordering the Thermal Circulator (5L), please specify the following: Mains Power (V) = 115 for 110-115 V or 220 for 220-240 V.
